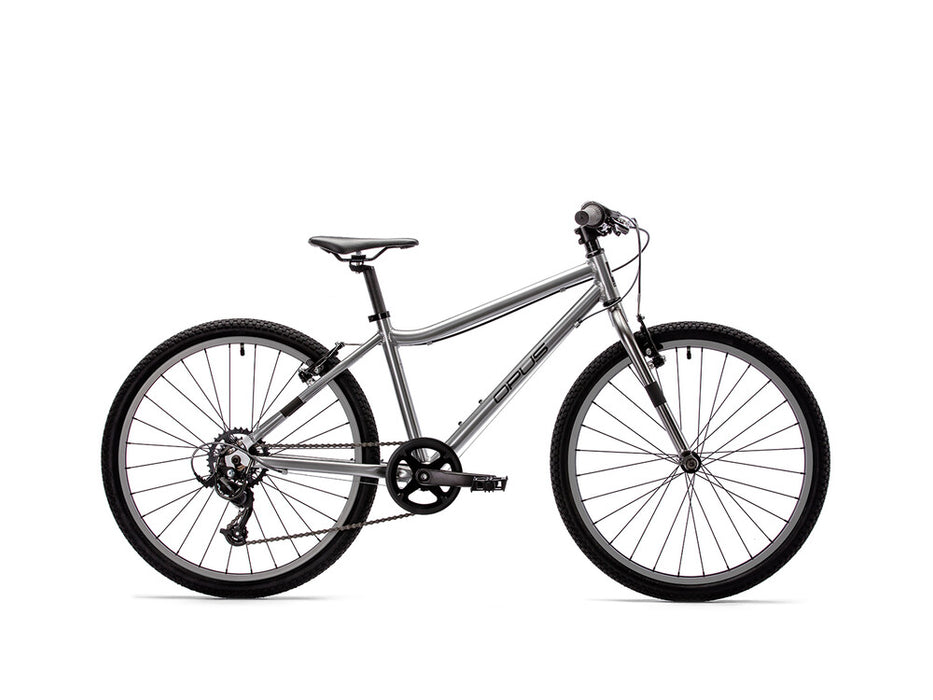

CURVE 24
by OPUS
Sold out
Original price
$624.99
-
Original price
$624.99
Original price
$624.99
$624.99
$624.99
-
$624.99
Current price
$624.99
IT'S ALL ABOUT THE LEARNING CURVE
We believe the Opus Curve should be every kid’s first bike. Now available in five sizes (12” to 24"), these micro machines are built with durable steel tubing and shaped to our proven youth geometries. The all new Curve 20 and Curve 24 are equipped with front and rear V-brakes and a reliable 7-speed drivetrain. Nothing more you could ask for in these 2 new additions to our Learning Curve.
Features
- Light alloy frame and steel fork
- Proven 24-inch geometry
- Microshift 1x7 drivetrain
- Equipped with front and rear rim brakes
- Easy-rolling tires
Specifications
| Frame | Aluminum |
| Fork | Steel |
| Sizes | 24" |
| Shifters | Microshift Twist Shifter 1×7 DS45 with Indicator |
| Front Derailleur | N/A |
| Rear Derailleur | Microshift 7 Speed RD-M26CS |
| Brakes | Power Linear V-brake |
| Brake Levers | Tektro Short reach |
| Crank | Samox single ring with chain cover |
| Chainrings | 36 |
| Bottom Bracket | VP-BC73 Sealed Cartridge Bearings |
| Cassette Cogs | 14-34 |
| Chain | KMC Z7 |
| Headset | VP semi-integrated |
| Handlebar | Opus Junior 540 mm, 30 mm rise |
| Stem | Opus Junior |
| Grips/Tape | Opus Junior |
| Saddle | Opus Youth Urban |
| Seatpost | Opus Junior 25.4 |
| Wheels/Rims | Ace aluminum |
| Hubs | YL-906 |
| Tires | Kenda K-Rad 24x1.95 |
| Pedals | Resin flat |
Geometries
| SIZE | 24" |
| SIZE (CM) | |
| RIDER (± CM) | 125-145 |
| Rider's Age | 8-12 |
| SEAT TUBE | 355 |
| TOP TUBE | 496 |
| HEAD TUBE | 100 |
| HEAD ANGLE | 70 |
| SEAT ANGLE | 74 |
| CHAIN STAY | 400 |
| BB DROP | 30 |
| STACK | 469 |
| REACH | 361 |
| STAND OVER | 610 |
| BAR | 540 |
| STEM | 40 |
| CRANK | 140 |
