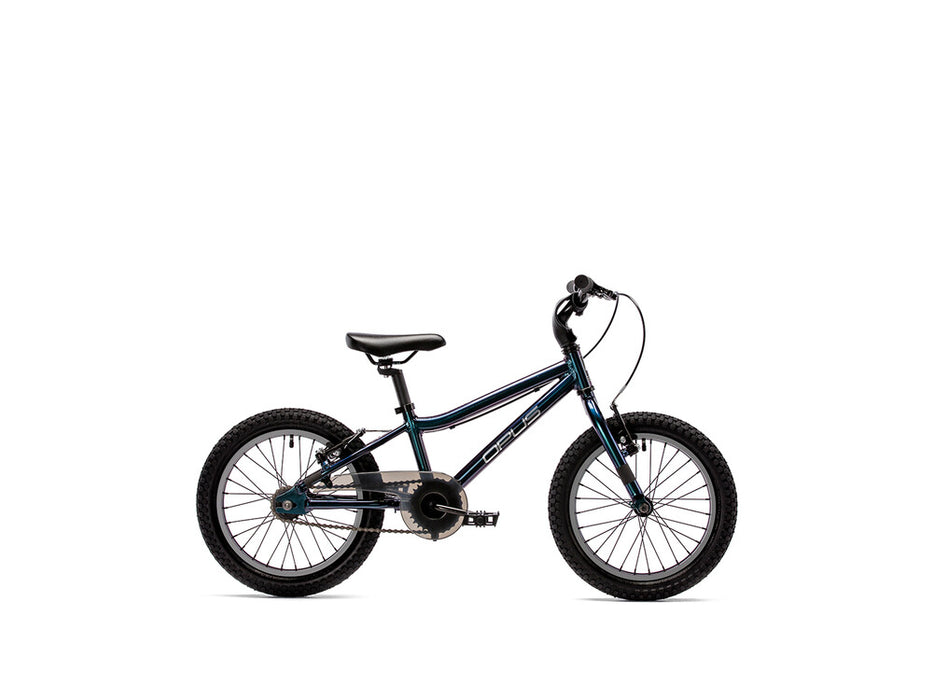

CURVE 16
by OPUS
Sold out
Original price
$424.99
-
Original price
$424.99
Original price
$424.99
$424.99
$424.99
-
$424.99
Current price
$424.99
Features
- Light alloy frame and steel fork
- Proven 16-inch geometry
- Single-speed drivetrain
- Equipped with front and rear rim brakes
- Stem pad and youth saddle
Specifications
| Frame | Aluminum |
| Fork | Steel |
| Sizes | 16" |
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Brakes | Tektro linear V-brake |
| Brake Levers | Power Short reach |
| Crank | YL 1 piece |
| Chainrings | 28 |
| Bottom Bracket | 9 pieces steel |
| Cassette Cogs | 18 |
| Chain | KMC S1 |
| Headset | Neco anti-spin |
| Handlebar | Opus Junior 480mm, 40 mm rise |
| Stem | Opus Junior |
| Grips/Tape | Opus Junior |
| Saddle | Opus Junior Urban |
| Seatpost | Opus Junior 25.4 |
| Wheels/Rims | Ace aluminum |
| Hubs | YL-801 / Joytech |
| Tires | Kenda K-Rad 16x2.125 |
| Pedals | Resin flat |
| Other | Adjustable/Removable training wheels |
| Other | Chainguard/Stem protector |
Geometries
| SIZE | 16" |
| SIZE (CM) | |
| RIDER (± CM) | 105-120 |
| Rider's Age | 4-6 |
| SEAT TUBE | 220 |
| TOP TUBE | 393 |
| HEAD TUBE | 80 |
| HEAD ANGLE | 70 |
| SEAT ANGLE | 73.5 |
| CHAIN STAY | 310 |
| BB DROP | 0 |
| STACK | 328 |
| REACH | 294 |
| STAND OVER | 425 |
| BAR | 480 |
| STEM | 60 |
| CRANK | 105 |
